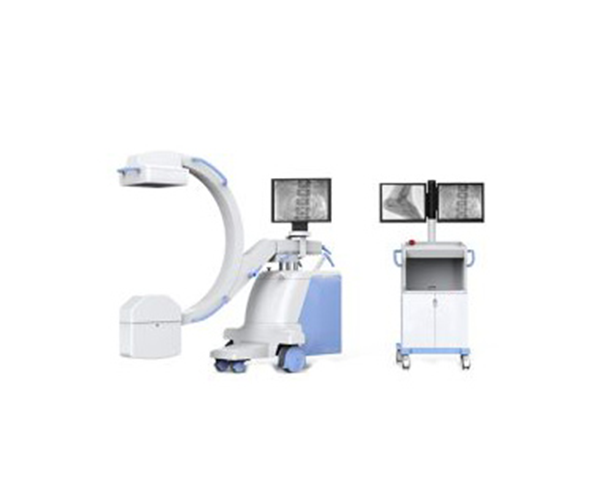

High Frequency Mobile Digital FPD C-Arm System (5 KW)

Model: -1108

Name	High Frequency Mobile Digital FPD C-Arm System (5 KW)
Item Code	572.5722
Brand	MedNephew
Manufacture	MedNephew GmbH & Co. KG
Origin	Germany

Application:

Features:

With a compact appearance, light design, easy to operate
Unique base electric auxiliary support arm design, it’s more security for using.
A unique hand-held controller design, convenient to operate working mode.
With a high-quality knockdown X-ray generator to reduce radiation.
With the Perspective KV, MA automatically track fluoroscopy to make the image brightness and clearness optimum imported FPD 9*9inch acquisition, ensure sharp image.

Workstation:

Registration: registration, medical records, Worklist
Collection: Start collection; prepare video, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image
Open silhouette, edge enhancement, recursive noise reduction Processing; four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
Paper Report: save, preview, expert annotation.
Dicom features: Dicom browsing, web service, Dicom3.0 interface to connect with PACS, OR HIS SYSTEM, and dry film printer
Automatic dynamic motion detection when fluoroscopy to avoid movement-related blurring, no silhouette.
Human graphic interface on workstation for select different body parts; like children, or adult, lateral or formal standing to do exposure.
3 sets synchronous monitors to help doctor have a great observing experience.
Error Code alarming for overloading of current, kv, or power and any problems.
Equipped with emergency stop button to suddenly failure or wrong operation.

Description

Advanced Features:

Human graphic LCD touch-Screen with accurate APR parameters settings realizes convenient operation.

Direct digital imaging effectively avoids the loss of information, edge-to-edge images, avoiding geometric distortion.

Smart FPD		Image intensifier
Intraoperative large field of vision (Effective field of view increased by 22%) Image without distortion (Improve surgical reliability)	VS	Small field of view, Less effective information The image is round Edge deformity

Image intensifier		Dynamic FPD
Output grayscale 12bit Wire pair resolution 1.8LP/mm Only 1 million pixels	VS	Output grayscale 16bit (16 grayscale depth) Limit resolution 3.2LP/mm (high density resolution) Nearly two million pixels

Image processing software: RCDPS (Rapid dynamic image processing system) multi-resolution image enhancement processing technology, meet client’s variety requirements.
Precise processing technology: different precise processing for parts
Intelligent variable- frequency technology to ensure lower dose and sharper image.

Intelligent dose control technology, achieve lower dose and sharper image at any condition, real-time dynamic image optimization to realize best image quality at any time.
Advanced human graphical programming technology for easier operation.
Accurate APR parameter settings. Various body parts and shape up to hundreds of exposure parameters settings.

Digital pulse mood to ensure lower dose and sharper image.
Intelligent variable- frequency pulse technology ensures high quality X-ay at efficient dose.

Product Specification:

Category	Items	Content
Generator	Power supply High frequency inverter	Power output: 5.0kW Main inverter frequency: 110 kHz
	Automatic fluoroscopy	tube voltage: 40 kv~120kv, adjust automatically tube current: 0.3mA~~4mA adjust automatically
	Manual fluoroscopy	tube voltage: 40 kv~120kv, continuous tube current: 0.3mA~~4mA continuous
	Pulse fluoroscopy	tube voltage: 40 kv~120kv, continuous tube current: 0.3mA~~30mA continuous
	Photography tube voltage,mA	tube voltage: 40KV~120KV, tube current: 25mA~100mA, mAs:1.0mAs~280mAs
X-ray tube	X-ray tube special for high frequency	Dual focus:0.3/1.5mm thermal capacity: 650kJ (867kHu)
Imaging system	Detector	Imported 9*9 inch Dynamic flat panel detector Resolution: 1K x 1K (1024 x 1024)
	Monitor	19” medical LCD monochrome display *3 sets
	Workstation software	Image W/L adjust, grayscale conversion, interest area balance, turn, noise reduction, enhancement, smoothing, sharpening, compression, zoom, measure, mark, print layout, Dicom image sending, Dicom image print and movie playback, etc.
Structure and performance	Direction wheel and main wheel	Direction wheel can rotate in any direction and main wheel can rotate in ±90°.
Structure and performance	C-arm movement	The up and down(motorized): 400mm, Forward and backward movement:200mm, Revolution around horizontal axis: ±180°, Revolution around vertical axis: ±15°, Distance from focus to screen: 1000 mm, C-arm open distance: 800mm, C-arm arc depth: 660mm; Slipping on orbit: 135°
