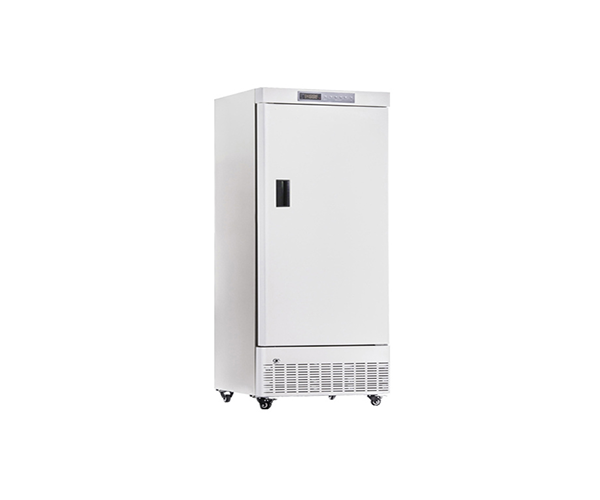

-40°C Upright Freezers

Model: 0203L, 0204L, 0205L

Applications

Used for long term preservation of virus, germs, vaccines, biological tissues, medicines, reagents and suitable for scientific research institution, biomedical, electronic and chemical industries

-40 °C Upright Freezer 0203L

-40 °C upright freezer 0104L is a single door 268 L microprocessor controlled freezer with a temperature range of (-30 °C to  40 °C). Digital control panel for easy viewing and control of parameters. Features an upright side door with built-in handle for easy opening with an independent inner door minimizing loss of cold temperature enhancing temperature stability. Adjustable wheels for easy installation and leveling of unit.

-40 °C Upright Freezer 0204L

-40 °C upright freezer 0204L is a single door 278 L microprocessor controlled freezer with a temperature range of (-30 °C to -40 °C). Digital control panel for easy viewing and control of parameters. Features an upright side door with built-in handle for easy opening with an independent inner door minimizing loss of cold temperature enhancing temperature stability.

-40 °C Upright Freezer 0205L

-40 °C upright freezer UPQ 3004 is a single door 328 L microprocessor controlled freezer with a temperature range of (-30 °C to -40 °C). Digital control panel for easy viewing and control of parameters. Features an upright side door with built-in handle for easy opening with an independent inner door minimizing loss of cold temperature enhancing temperature stability.

Features

  • Digital display for ease of operation
  • Easy to use built-in handle design
  • Adjustable shelves for sample loading
  • Manual defrosting
  • Independent inner door minimizing loss of cold temperature
  • Adjustable wheels for easy installation and leveling
  • Safety features (High-low temperature, Low battery, Controller error, power failure for 72 hrs. alarm)

Description

Specifications
Model No 0203L 0204L 0205L
Volume 268 L 278 L 328 L
Temperature range -30 °C to -40 °C -30 °C to -40 °C -30 °C to -40 °C
Interior dimensions (W x D x H) 508 x 455 x 1137 mm  480 x 415 x 1460 mm 508 x 455 x 1393 mm
Steel shelves 3 drawers 7 drawers 4 shelves
Ambient temperature 10 °C to 32 °C 10 °C to 32 °C 10 °C to 32 °C
Power 300 W 185 W 300 W
Cooling method Direct cooling Direct cooling Direct cooling
Defrost Manual Manual Manual
Refrigerant R290 R290 R290
Temperature controller Microprocessor Microprocessor Microprocessor
Display Digital Digital Digital
Evaporator Submerged coil Submerged coil Submerged coil
Evaporator material Copper pipe Aluminum tube Copper pipe
Inside material Color sprayed steel Color sprayed steel Color sprayed steel
Outside material Color sprayed steel Color sprayed steel Color sprayed steel
Insulation PURF PURF PURF
Condenser Inside foaming Inside foaming Wire and tube
Sensor NTC NTC NTC
Power consumption 4 kW 1.5 kW 4 kW
Voltage 220 V / 50 Hz 220 V / 50 Hz 220 V / 50 Hz
Noise 53.5 dB 47 dB 50.5 dB
Exterior dimension (W x D x H) 673 x 676 x 1630 mm 659 x 600 x 1694 mm 673 x 676 x 1886 mm
Weight 98.5 kgs 86 kgs 113 kgs
