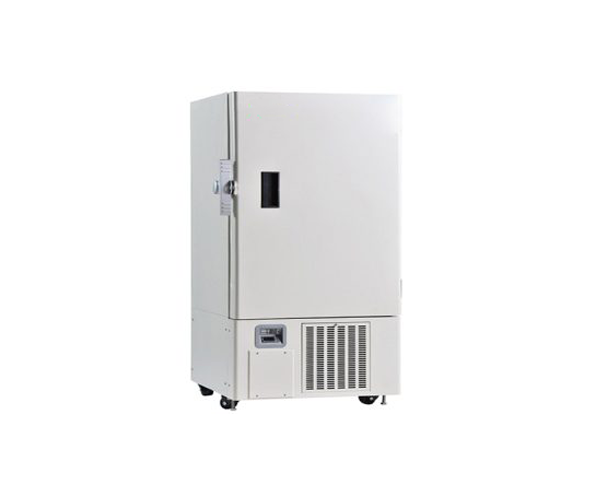

-86 °C Mixed Gas Upright Freezer

Model: -8616L, -8617L, -8618L

-86 °C Mixed Gas Upright Freezer -8616L

-86 °C Mixed Gas Upright Freezer -8616L is a 50 L microprocessor controlled unit with an independent mixed refrigerant, saving energy by 50 %. Features removable inner doors for users to defrost with a thermally insulated silicon door seal maintaining the temperature stability. Password protected lockable keyboard prevents unwanted data changes. Dual lock design ensures system safety.

-86 °C Mixed Gas Upright Freezer -8617L

-86 °C Mixed Gas Upright Freezer -8617L is a 188 L microprocessor controlled unit with an independent mixed refrigerant, saving energy by 50 %. Features removable inner doors for users to defrost with a thermally insulated silicon door seal maintaining the temperature stability. Password protected lockable keyboard prevents unwanted data changes. Dual lock design ensures system safety.

-86 °C Mixed Gas Upright Freezer -8618L

-86 °C Mixed Gas Upright Freezer -8618L is a 340 L microprocessor controlled unit with an independent mixed refrigerant, saving energy by 50 %. Features removable inner doors for users to defrost with a thermally insulated silicon door seal maintaining the temperature stability. Password protected lockable keyboard prevents unwanted data changes. Dual lock design ensures system safety.

Features

  • Mixed gas refrigerant system
  • Functional audio visual alarm
  • Lockable password protected keyboard
  • Thermal insulated silicon door seal
  • Reserved position and port for chart recorder
  • Removable dust filter for ease of cleaning
  • Safety features (temperature curve, alarm information, user management mode, auto diagnostic malfunction)

Description

Specifications
Model No -8616L -8617L -8618L
Capacity 50 L 188 L 340 L
Temperature range - 40 °C to -86 °C - 40 °C to -86 °C - 40 °C to -86 °C
Power 450 W 610 W 668 W
Inner dimension 361 x 429 x 406 mm 465 x 465 x 830 mm 488 x 600 x 1140 mm
Shelves 1 2 3
Cooling method Direct cooling Direct cooling Direct cooling
Defrost Manual Manual Manual
Refrigerant Mixed gas Mixed gas Mixed gas
Ambient temperature 10 °C to 32 °C 10 °C to 32 °C 10 °C to 32 °C
Evaporator Submerged coil Submerged coil Submerged coil
Evaporator material Copper tube Copper tube Copper tube
Condenser Copper tube and finned Copper tube and finned Copper tube and finned
Sensor PTC PTC PTC
Temperature controller Microprocessor Microprocessor Microprocessor
Display Digital display Digital display Digital display
Inside material Stainless steel Stainless steel Stainless steel
Outside material Color sprayed steel Color sprayed steel Color sprayed steel
Insulation PURF PURF PURF
Power consumption / 24 hr 6.5 kWh 8.2 kWh 11.2 kWh
Noise 49.5 dB 55 dB 55dB
Voltage 220 V / 50 Hz 220 V / 50 Hz 220 V / 50 Hz
Current 3.1 A 3.3 A 3.5 A
Exterior dimension 540 x 620 x 1115 mm 830 x 810 x 1607mm 855 x 1006 x 1920mm
Weight 75 kgs 145 kgs 175 kgs
