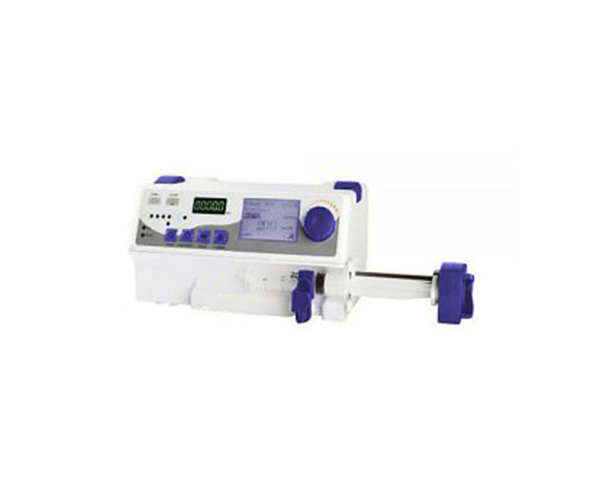

Syringe Pump (Single Channel)

Description

Features:

HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
Audible and visual alarm for Occlusion, Equipment failure, Software Exception, Injection finish, Limited finished, Battery running out, improperly installed, abnormal operation etc.
The syringe pump can be operated separately and compatible with 10ml, 20ml, 30ml, 50/60ml syringe of any brands after correct calibration;
Preset solution volume to greatly reduce the workload of nurses;
Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
Three levels of occlusion: high, medium and low;
Purge and Bolus function;
KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h (0.1ml/h step);
Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;
Power Source: 100-240Vac, 50/60Hz; Internal rechargeable Li battery, capacity≥1,800mAh, voltage=11.1V, 4 hours backup time at the rate of 25ml/h (appointed medium rate in IEC60601-2-24) for the new battery charged for 12hours.
To facilitate the use in some special occasions, the machine's DC outlet can be an external DC 12V 2A standby power supply.
One-key operation makes setup easy and simple;
Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
Automatically record the settings of last injection;
Can store 2000pcs of injection records and it has a drug library;
OEM is available.

Specifications:

Injection Rate:	50/60ml Syringe: 0.1ml/h~1500ml/h (0.1ml/h step),
	30ml Syringe: 0.1ml/h~900.0ml/h (0.1ml/h step),
	20ml Syringe 0.1ml/h---600ml/h (0.1ml/h step),
	10ml Syringe 0.1ml/h---300ml/h (0.1ml/h step),
Rate Accuracy :	Within±3% (after correct calibration).
Mechanical Accuracy:	Within±2%.
Maximum Stackable	8pcs.
Purge Rate:	50(60)ml Syringe: 1500ml/h,
	30ml Syringe: 900ml/h,
	20ml Syringe: 600ml/h,
	10ml Syringe: 300ml/h,
Bolus Rate :	50(60)ml Syringe: 1200ml/h,
	30ml Syringe: 720ml/h,
	20ml Syringe: 480ml/h,
	10ml Syringe: 240ml/h.
Volume Limit :	0.1ml---9999.9ml (0.1ml step).
Total Injection :	0.1ml---9999.9ml (0.1ml step).
Maximum infusion pressure :	150kPa.
Occlusion :	High 800mmHg±200mmHg (106.7kPa±26.7kPa),
	Medium 500mmHg±100mmHg (66.7kPa±13.3kPa),
	Low 300mmHg±100mmHg (40.7kPa±13.3kPa).
Audible and Visible Alarms :	Occlusion, Equipment failure, Software Exception, Injection Finish, Limited finished, Battery running out, Improperly Installed, Abnormal operation etc.
Power Source:	100-240Vac, 50/60Hz; Internal rechargeable Li battery, capacity≥1,800mAh, voltage=11.1V, 4 hours backup time at the rate of 25ml/h (appointed medium rate in IEC60601-2-24) for the new battery charged for 12hours. To facilitate the use in some special occasions, the machine's DC outlet can be an external DC 12V 2A standby power supply.
KVO Speed :	0.1~5ml/h (0.1ml/h step).
Fuse:	T2AH/250V, 2pcs installed.
Power Consumption:	35VA.
Equipment Classification:	Class I, internal power supply, Type CF.
IP Classification:	IPX2.
Operation Environment:	a) Ambient temperature: +5℃~+40℃.
	b) Relative humidity: 20%~90%.
	c) Atmospheric pressure: 86.0kPa~106.0kPa.
Transport & Storage Condition:	a) Ambient temperature: -20℃~+55℃.
	b) Relative Humidity: ≤95%.
	c) Atmospheric pressure: 50.0kPa~106.0kPa.
Syringe :	Compatible with 10ml, 20ml, 30ml, 50/60ml syringe of any brands after correct calibration.
Syringe maximum value ( under single fault condition):	1ml.
Dimension :	280mm (L) x 210mm (W) x 130mm (H).
Net Weight:	2.2Kg.
