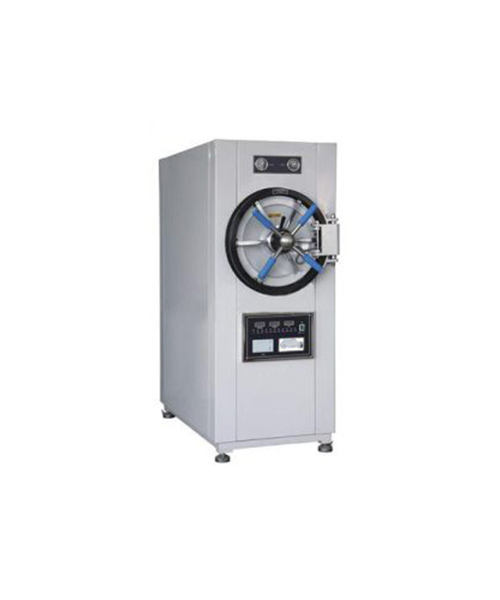

Horizontal Steam Autoclave Sterilizer 150SAS

Name	150SAS Horizontal Steam Autoclave Sterilizer
Brand	MedNephew
Manufacture	MedNephew GmbH & Co. KG
Origin	Germany

Characteristics

Automatically controlled the sterilizing process, easy to operate.
With drying function, suitable for the medical dressing drying.
With overtemperature, overpressure auto-protect.
The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the Indoor doesn’t close well.
The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted from the water tank.
Automatically cut off the power if the water lack happened, and alarm at the meanwhile.
The chamber of the sterilizer is made of stainless steel with printer.

Description

MODEL	150 SAS		200 SAS	280 SAS
Technical Data	150 SAS		200 SAS	280 SAS
Sterilizing chamber volume	150L φ440×1000		200L φ515×1000	280L φ600×1000
Working pressure	0.22Mpa
Working temperature	134℃
Temperature adjust range	40℃-134℃
Time for sterilization	0-99min
Time for drying	0-99min
Heat average	≤±2℃
Power	9kw/380V 50Hz	9kw/380V 50Hz	12kw/380V 50Hz
Dimension（mm）	1400×650×1600	1400×750×1700	1520×910×1900
Exterior package dimension（mm）	1560×820×1820	1560×910×1880	1680×1080×2100
G.W/N.W	430/340kg	436/350kg	570/462Kg
